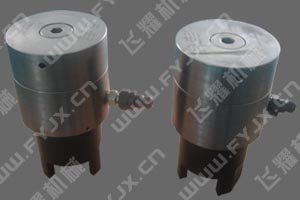

FY-HTS液壓螺栓拉伸器
- FY-HTS液壓螺栓拉伸器特性：
- ·活塞自動復位設計，適合頻繁使用。
- ·適用于多規格螺栓的拉伸，精度高。
- ·標準工作壓力：150Mpa。
- ·配用超高壓手動，油動，氣動泵站均可使用。
FY-HTS液壓螺栓拉伸器參數表：
| 型號 | 適用螺栓 M |
最大負載 （KN） |
尺寸（㎜） | 重量 （㎏） |
||||
| A | B | C | D | E | ||||
| FY-HTS30-36 | 30 | 486 | 109 | 80.0 | 41.0 | 132.0 | 180.0 | 5.5 |
| 33 | 486 | 109 | 88.0 | 44.0 | 135.0 | 186.0 | 5.5 | |
| 36 | 486 | 109 | 96.0 | 47.0 | 138.0 | 192.0 | 5.5 | |
| FY-HTS33-42 | 33 | 814 | 132 | 88.0 | 44.0 | 137.0 | 188.0 | 7.0 |
| 36 | 814 | 132 | 96.0 | 47.0 | 140.0 | 194.0 | 7.0 | |
| 39 | 814 | 132 | 96.0 | 50.4 | 143.5 | 196.0 | 7.0 | |
| 42 | 814 | 132 | 108.0 | 53.5 | 146.5 | 207.5 | 7.0 | |
| FY-HTS39-48 | 39 | 989 | 150 | 113.0 | 50.0 | 149.0 | 207.0 | 10.0 |
| 42 | 989 | 150 | 113.0 | 53.5 | 152.5 | 213.5 | 10.0 | |
| 45 | 989 | 150 | 118.0 | 57.0 | 156.0 | 220.0 | 10.0 | |
| 48 | 989 | 150 | 114.0 | 60.0 | 159.0 | 226.0 | 10.0 | |
| FY-HTS52-56 | 52 | 1413 | 174 | 132.0 | 63.0 | 163.0 | 235.0 | 15.0 |
| 56 | 1413 | 174 | 138.0 | 69.5 | 169.0 | 247.0 | 15.0 | |
| FY-HTS56-68 | 56 | 1649 | 198 | 138.0 | 69.5 | 169.5 | 249.0 | 17.0 |
| 60 | 1649 | 198 | 138.0 | 69.5 | 69.5 | 249.0 | 17.0 | |
| 64 | 1649 | 198 | 153.0 | 76.0 | 175.0 | 262.0 | 17.0 | |
| 68 | 1649 | 198 | 164.0 | 82.0 | 182.0 | 275.0 | 17.0 | |
| FY-HTS72-76 | 72 | 2131 | 222 | 157.0 | 82.0 | 182.0 | 275.0 | 26.0 |
| 76 | 2131 | 222 | 180.0 | 89.0 | 189.0 | 288.0 | 26.0 | |
| FY-HTS76-90 | 76 | 2544 | 252 | 180.0 | 89.0 | 192.5 | 291.5 | 29.5 |
| 80 | 2544 | 252 | 180.0 | 89.0 | 192.5 | 291.5 | 29.5 | |
| 85 | 2544 | 252 | 190.0 | 95.0 | 198.5 | 303.5 | 29.5 | |
| 90 | 2544 | 252 | 205.0 | 101.0 | 204.5 | 316.5 | 29.5 | |
| FY-HTS95-100 | 95 | 3101 | 282 | 200.0 | 107.0 | 211.0 | 330.0 | 38.0 |
| 100 | 3101 | 282 | 210.0 | 114.0 | 218.0 | 345.0 | 38.0 | |
| FY-HTS105-115 | 105 | 3793 | 318 | 225.0 | 120.0 | 228.0 | 365.0 | 49.0 |
| 110 | 3793 | 318 | 225.0 | 120.0 | 228.0 | 365.0 | 49.0 | |
| 115 | 3793 | 318 | 225.0 | 120.0 | 228.0 | 365.0 | 49.0 | |
關于螺栓拉伸器的詳細定制參數，請參考：《非標螺栓拉伸器產品定制》
